The Passenger was an evidence-based art installation and psychological experiment by Assim Kalouaz that tried to elicit ‘awe’ in participants. It took place at École Supérieure du Digital. Michael Anslow collaborated on this installation. In particular, helping with the signal processing of breath oscillations and lighting.
You can read a bit about the psychological underpinnings of ‘awe’ used in the experiment here.
An article on 'awe' written by Michael Anslow related to The Passenger installation.
Photo Gallery
There are two Pepper’s ghost illusionscreated by using transparent plastic screens below tablets against a screen projector. These illusions capture a person floating and a sphere. Four lights are positioned around the participant as well as stereo speakers on either side of the participant. The lights and Pepper’s ghost illusions are modulated by breath. Content is shown in the projector and played on stereo speakers related to the theme of the experiment.

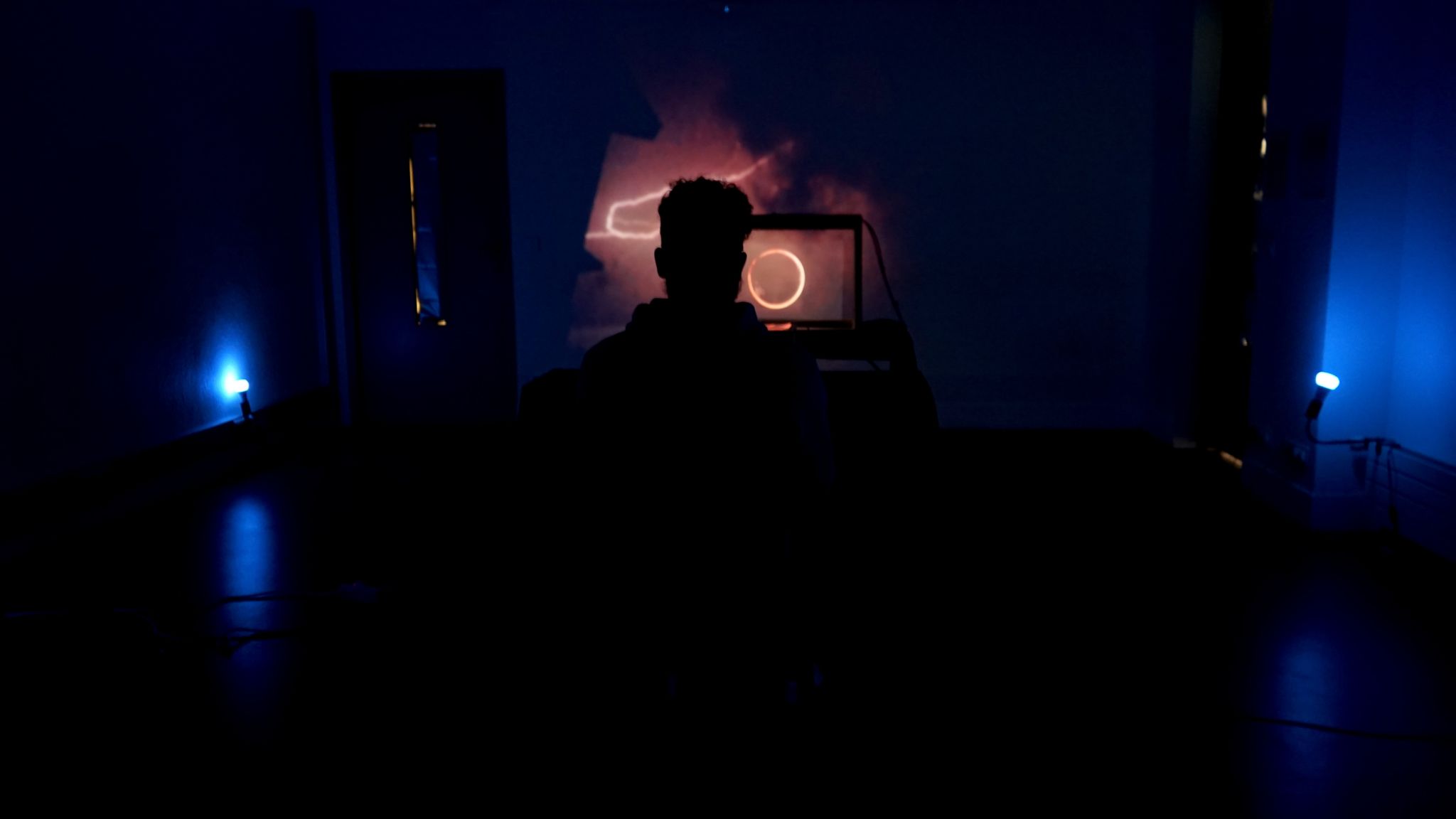

Atmosphere — Ambient lighting.

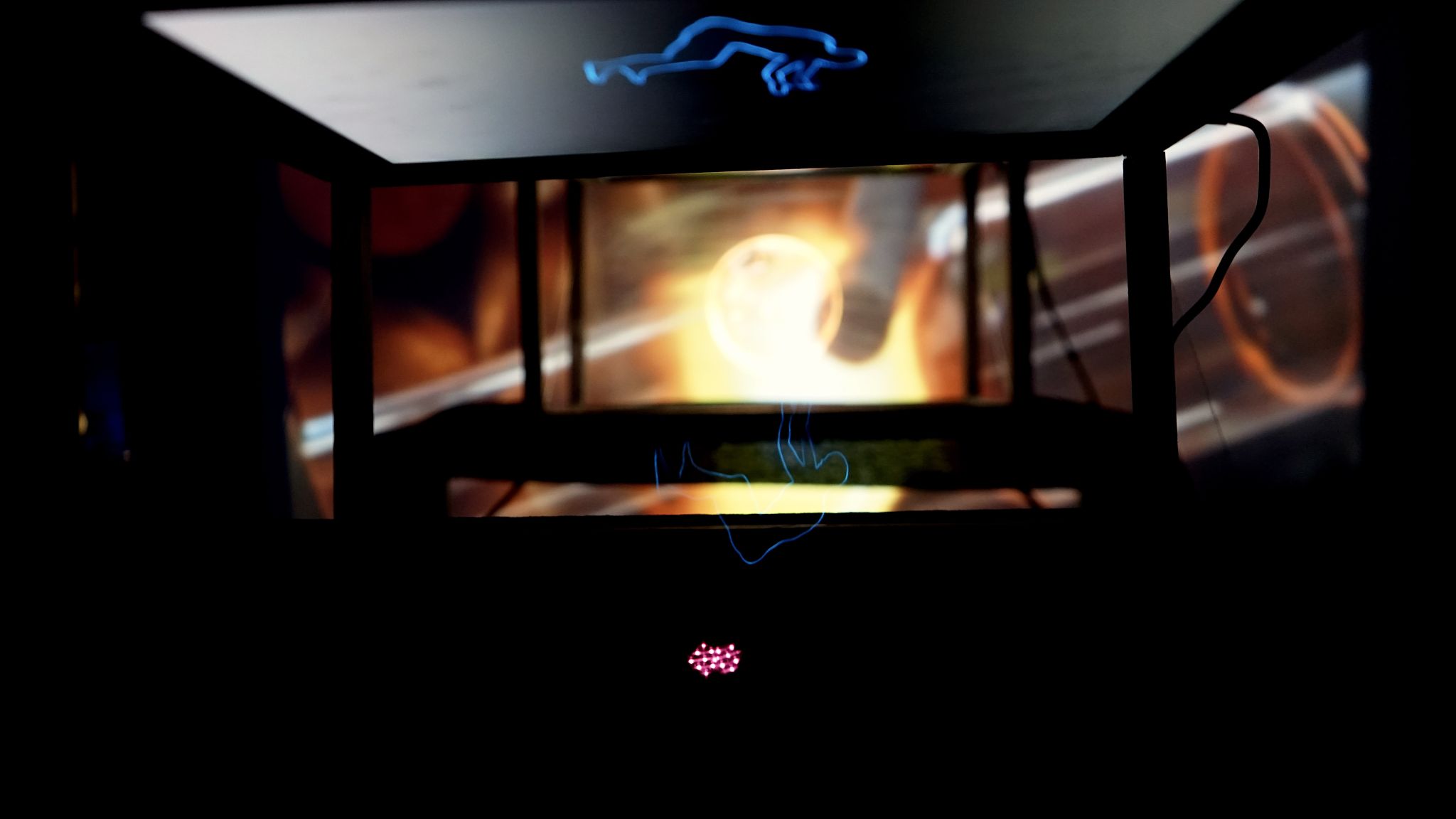

Human figure floating as a Pepper's ghost illusion.

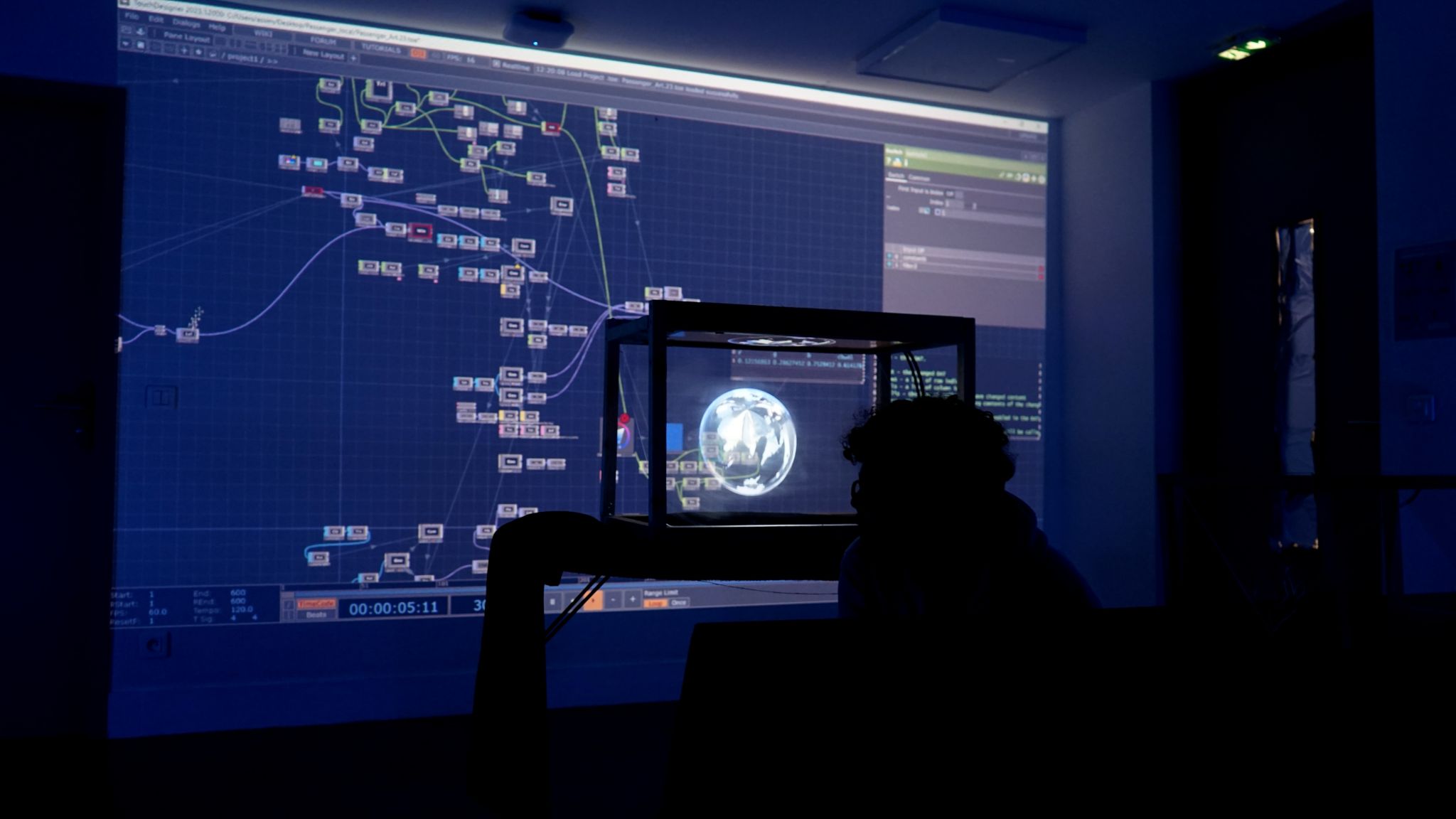

Tweaking the Touch Designer setup.

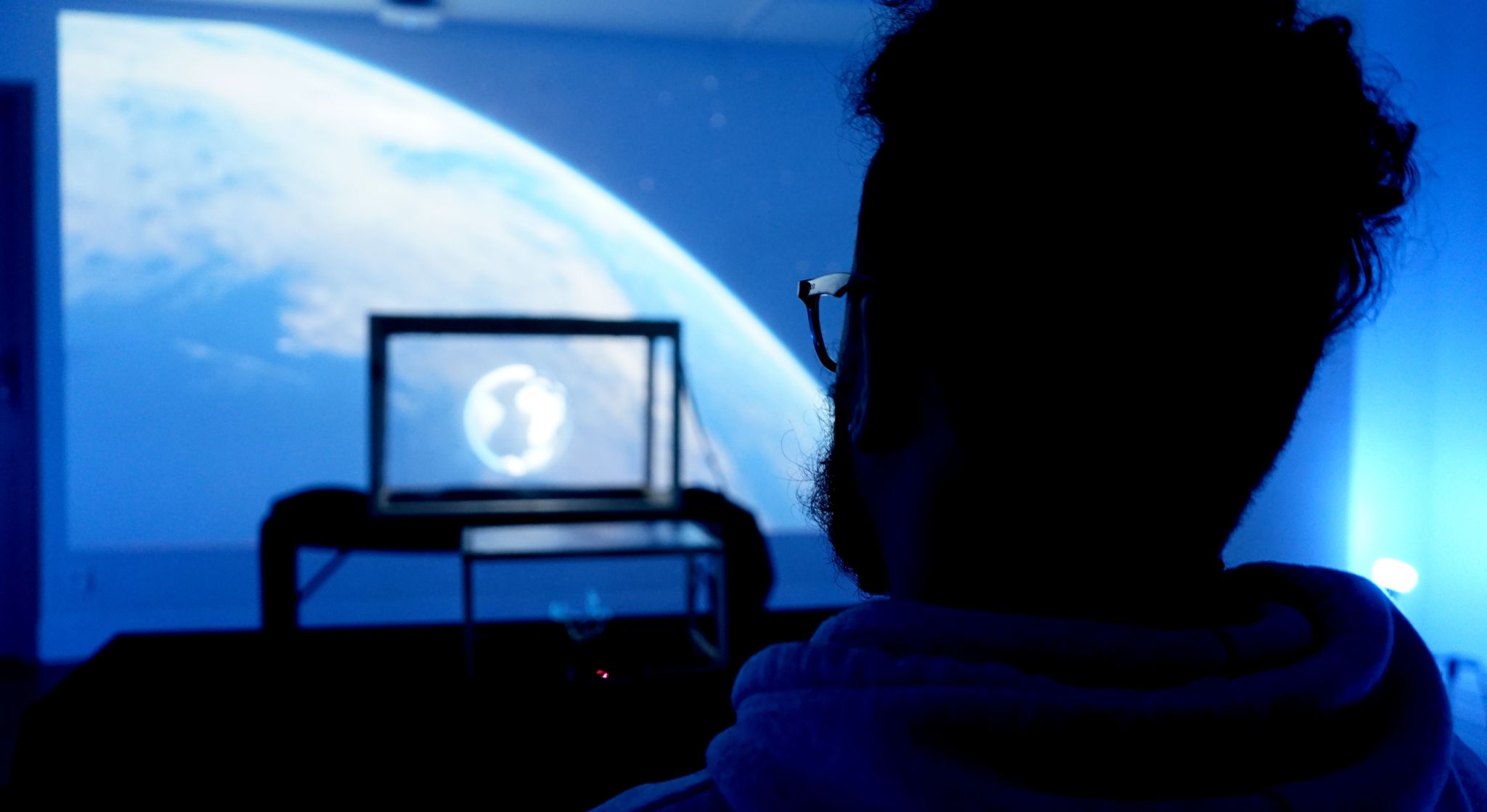

Reference to overview effect in the installation.
Some Technical Details
The installation was implemented in Touch Designer. Oscillations in breath were measured by a RealSense depth camera cropped on the chest of the participant. An adaptive signal was extracted from depth data and used to controlled various aspects of the installation.
On the lighting side of things, an OSCOut Dat sent normalised (between 0 and 1) breath data to a simple Python Flask server that controlled four Phillips Hue lights using the Phillip’s Hue Entertainment API. This API support fast modulation of lights at around 20 changes per second.
It has been shown that such non-contact breathing measurements captured by depth cameras correlate reasonably well with chest band measurements (Valenzuela et al., 2021). This was more than adequate as a control for the installation for which it would be sufficient to capture a smooth interpolation between peak inhalation and exhalation.
Python Server Code
This was put together for the installation. It’s fragile, but was sufficient for our one-off installation. I experimented a little with different smoothing approaches for the breathing oscillations but ultimately used a TD solution instead.
from collections import deque
import argparse
from typing import Any, Callable, Tuple
from pythonosc import dispatcher, osc_server
from hue_entertainment_pykit import Entertainment, Streaming, Discovery
import time
def rgb_to_xyb(r: float, g: float, b: float) -> Tuple[float, float, float]:
def to_linear(c: float) -> float:
return c / 12.92 if c <= 0.04045 else ((c + 0.055) / 1.055) ** 2.4
r_lin, g_lin, b_lin = map(to_linear, (r, g, b))
X = 0.4124564 * r_lin + 0.3575761 * g_lin + 0.1804375 * b_lin
B = 0.2126729 * r_lin + 0.7151522 * g_lin + 0.0721750 * b_lin
Z = 0.0193339 * r_lin + 0.1191920 * g_lin + 0.9503041 * b_lin
denom = X + B + Z
if denom == 0:
return 0.0, 0.0, B
x = X / denom
y = B / denom
return x, y, B
def create_entertainment_stream(bridge_ip: str) -> Tuple[Streaming, Any]:
discovery = Discovery()
bridges = discovery.discover_bridges(bridge_ip)
if len(bridges) == 0:
print("No bridges found.")
exit(1)
bridge_name = list(bridges)[0]
bridge = bridges[bridge_name]
entertainment_service = Entertainment(bridge)
configs = entertainment_service.get_entertainment_configs()
if len(configs) == 0:
print("No entertainment config setup.")
exit(1)
config_id = list(configs)[0]
config = configs[config_id]
streaming = Streaming(bridge, config, entertainment_service.get_ent_conf_repo())
streaming.start_stream()
streaming.set_color_space("xyb")
init_light(streaming, config)
return streaming, config
def handle_request(streaming, config: Any, smoothing: str = "none") -> Callable[[str, Any], None]:
previous_brightness: float | None = None
# --- Smoothing state ---
moving_window = deque(maxlen=5)
exp_alpha = 0.8
exp_value = None
kalman_est = 0.0
kalman_P = 1.0
kalman_R = 0.01
kalman_Q = 0.001
last_update = 0.0
update_interval = 1.0 / 20.0 # 20 times per second
def smooth(value: float) -> float:
nonlocal moving_window, exp_value, kalman_est, kalman_P
if smoothing == "none":
return value
elif smoothing == "moving":
moving_window.append(value)
return sum(moving_window) / len(moving_window)
elif smoothing == "exponential":
# Initialize if needed
if exp_value is None:
exp_value = value
else:
exp_value = exp_alpha * value + (1 - exp_alpha) * exp_value
# Apply thresholds
if exp_value < 0.01: # anything very close to 0 → 0
exp_value = 0.0
elif exp_value > 0.99: # anything very close to 1 → 1
exp_value = 1.0
return exp_value
elif smoothing == "kalman":
# Prediction
kalman_P = kalman_P + kalman_Q
# Update
K = kalman_P / (kalman_P + kalman_R)
kalman_est = kalman_est + K * (value - kalman_est)
kalman_P = (1 - K) * kalman_P
return kalman_est
else:
return value
def handle_message(address: str, *args: Any) -> None:
nonlocal previous_brightness, last_update
now = time.time()
if now - last_update < update_interval:
return # skip this update if it's too soon
red, green, blue, brightness = args
x, y, _ = rgb_to_xyb(red, green, blue)
smoothed_brightness = smooth(brightness)
if smoothed_brightness != previous_brightness:
set_all(x, y, smoothed_brightness, streaming, config)
previous_brightness = smoothed_brightness
return handle_message
def set_all(x, y, brightness: float, streaming, config) -> None:
for i in range(len(config.channels)):
streaming.set_input((x, y, brightness, i))
def init_light(streaming, config) -> None:
for i in range(len(config.channels)):
streaming.set_input((0, 0, 0, i))
if __name__ == "__main__":
parser = argparse.ArgumentParser(description="OSC to Hue bridge server")
parser.add_argument("--port", type=int, default=5005, help="Port to listen on")
parser.add_argument("--bridge_ip", default='192.168.0.25', type=str, required=True, help="Hue bridge IP address")
parser.add_argument("--smoothing", type=str, choices=["none", "moving", "exponential", "kalman"],
default="none", help="Brightness smoothing method")
args = parser.parse_args()
ip = "127.0.0.1"
port = args.port
bridge_ip = args.bridge_ip
disp = dispatcher.Dispatcher()
streaming, config = create_entertainment_stream(bridge_ip)
disp.map("/change_all_color_brightness", handle_request(streaming, config, args.smoothing))
server = osc_server.ThreadingOSCUDPServer((ip, port), disp)
print(f"Serving on {server.server_address}")
# This will handle a keyboard interrupt such as ctrl-c to stop the script
try:
server.serve_forever()
except KeyboardInterrupt:
print("\nServer stopped by user")
server.shutdown() # cleanly stop the server
